EPYC 9004/7001/7002/7003搭載　VT64製品

TOP >製品一覧 >AMD EPYCプラットフォーム >EPYC 9004/7001/7002/7003搭載　VT64製品

VT64 AEシリーズ

EPYC 9004搭載

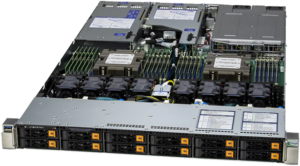

  • VT64 Server AE-1S



    4th Generation EPYC 1U サーバ

    • Base model：Hyper A+ Server AS -1125HS-TNR
    • 4th Generation AMD EPYC™ 9004 Series Processors
    • ASPEED AST2600
    • 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
    • 1 PCIe 5.0 x16, FH, 6.6″L
      2 PCIe 5.0 x16 FH, 10.5″L
      Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
    • 8 Hot-swap 2.5” NVMe/SAS/SATA2 (Option for up to 12 drives)
    • 800/1200W Redundant Power Supplies (Titanium Level)
      (*Full redundancy based on configuration and application load)
    • 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
    • W x H x D=437 x 43 x 747 mm

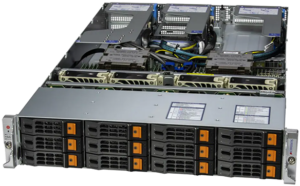

  • VT64 Server AE2-2S

    4th Generation EPYC 2U サーバ

    • Base model：Hyper A+ Server AS -2025HS-TNR
    • 4th Generation AMD EPYC™ 9004 Series Processors
    • ASPEED AST2600
    • 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
    • 1 AIOM/OCP NIC 3.0 Slot
      Configuration Options for up to 4 PCIe 5.0 x16 Slots OR
      Configuration Options for up to 8 PCIe 5.0 x8 Slots
    • 12 Hot-swap 3.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
    • 1600W Redundant Power Supplies (Titanium Level)
      Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level)
      (*Full redundancy based on configuration and application load)
    • 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
    • W x H x D=437 x 88.9 x 803 mm

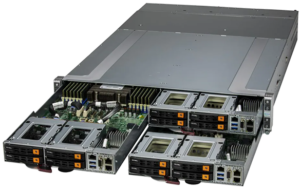

  • VT64 Server AE2-2SQ

    Single EPYC 2U サーバ
    Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

    • Base model：GrandTwin A+ Server AS -2115GT-HNTF
    • Single-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
    • 12 DIMM Slots , up to 3TB DDR5 memory
    • Flexible bays for either Storage or AIOM / OCP 3.0 slots
    • Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
    • Up to 4 Hot-swap 2.5″ NVMe/SATA drives
    • W x H x D=449 x 88 x 711.2 mm

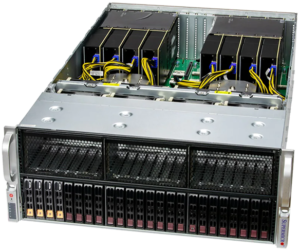

  • VT64 Server AE2-4S

    Dual EPYC 4Uサーバ

    • Base model：GPU A+ Server AS -4125GS-TNRT
    • Flexible GPU support: active & passive GPUs
      Up to 8 direct attached double width, full length GPUs
    • Dual-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
    • 24 DIMM Slots, up to 6TB DDR5 memory
    • 1 M.2 Slot
      up to 4x 2.5″ Hot-swap NVMe drive bays
    • AIOM / OCP 3.0 Support
    • W x H x D=437 x 178 x 737mm

VT64 Gシリーズ

EPYC 9004搭載

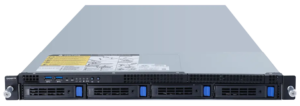

  • VT64 Server AE-1G

    Gシリーズ Dual EPYC 1Uサーバ

    • Base model：R183-Z90 (rev. AAD2)
    • AMD EPYC™ 9004 series processor family
    • Dual processors, 5nm technology
    • 12-Channel RDIMM DDR5, 24 x DIMMs
    • Dual ROM Architecture supported
    • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
    • 1 x dedicated management port
    • 4 x 3.5/2.5″ SATA hot-swappable bays
    • 3 x Ultra-Fast M.2 with PCIe Gen3 interface
    • 2 x FHHL PCIe Gen5 x16 expansion slots
    • 2 x OCP 3.0 Gen5 x16 mezzanine slots
    • Dual 1600W (240V) 80 PLUS Platinum redundant power supply
    • W x H x D=438 x 43.5 x 815 mm

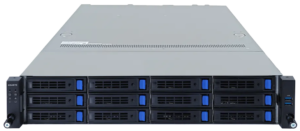

  • VT64 Server AE2-2G

    Gシリーズ Dual EPYC 2Uサーバ

    • Base model：R283-Z90 (rev. AAD3)
    • AMD EPYC™ 9004 series processor family
    • Dual processors, 5nm technology
    • 12-Channel RDIMM DDR5, 24 x DIMMs
    • Dual ROM Architecture supported
    • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
    • 1 x dedicated management port
    • 12 x 3.5/2.5″ SATA hot-swappable bays
    • 2 x 2.5″ SATA hot-swappable bays on rear side
    • 3 x Ultra-Fast M.2 with PCIe Gen3 interface
    • 6 x FHHL PCIe Gen5 x16 and x8 expansion slots
    • 2 x OCP 3.0 Gen5 x16 mezzanine slots
    • Dual 1600W (240V) 80 PLUS Platinum redundant power supply
    • W x H x D=438 x 87 x 815 mm

VT64 タワーシリーズ

EPYC 7001/7002/7003搭載

  • VT64 Workstation AE2-4S

    拡張性の高いEPYCワークステーション

    • Base model：A+ Server 4023S-TRT
    • Dual AMD EPYC™ 7001/7002 Series Processors
    • Up to 2TB Registered ECC DDR4
      2666MHz SDRAM in 16 DIMMs
    • Expansion slots:
      2 PCI-E3.0 x16 slots
      3 PCI-E3.0 x8 slots
      M.2 Interface: 1 SATA/PCI-E 3.0 x2
      M.2 Form Factor: 2280, 22110
      M.2 Key: M-key
    • Integrated IPMI 2.0 + KVM with dedicated LAN
    • Video via Aspeed AST2500 BMC
    • Dual 10G LAN ports
    • 8 Hot-swap 3.5” SATA3 drive bays;
      3 peripheral 5.25” drive bays;
      1 M.2 NVMe SSD supported
    • 1280W Redundant Power Supplies Platinum Level
    • W x H x D=178 x 452 x 647 mm

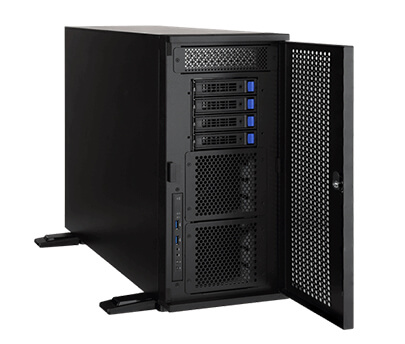

  • VT64 Workstation AE-4G

    Gシリーズ ワークステーションモデル

    • Base model：W291-Z00
    • High performance tower workstation / e-business server
    • AMD EPYC™ 7001/7002/7003 series processor family
    • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
    • 2 1Gb/s LAN ports (Intel® I210-AT)
    • 1 dedicated management port
    • 4 Hot-swap 3.5” or 2.5” SATAIII HDD/SSD bays
    • Ultra-Fast M.2 with PCIe Gen3 x4 interface
    • Up to 5 x PCIe Gen3 expansion slots
    • Aspeed® AST2500 remote management controller
    • Dual 1600W 80 PLUS Platinum redundant power supply
    • W x H x D=200 x 450.2 x 642.2 mm
